Introduction to Pneumatic Drilling Rigs
Shitan Machinery Drilling Machine Factory is a leading manufacturer of pneumatic water well drilling machines in China, offering a variety of models (light, medium, heavy) to adapt to different geological conditions and can drill to depths of 0-1000 meters. Our pneumatic drilling rig is made of high-strength steel, with a longer lifespan. Equipped with advanced compressed air technology, it has fast drilling speed, low energy consumption, and better operating costs.
Parameters of pneumatic water well drilling rig
| Model | ST180 | ST200 | ST260 | ST300 | ST350 | ST450 | ST500 | ST600 | ST800 | ST1000 |
| Drilling Depth | 180m | 200m | 260m | 300m | 350m | 450m | 500m | 600m | 800m | 1000m |
| Drilling Hole Diameter | 105-305mm | 105-305mm | 105-305mm | 105-305mm | 105-350mm | 105-350mm | 105-350mm | 105-400mm | 105-500mm | 105-500mm |
| Working wind pressure | 1.25-3.5Mpa | 1.25-3.5Mpa | 1.25-3.5Mpa | 1.25-3.5Mpa | 1.25-3.5Mpa | 1.25-3.5Mpa | 1.25-3.5Mpa | 1.25-3.5Mpa | 1.25-3.5Mpa | 1.25-3.5Mpa |
| Gas consumption | 16-55m³/min | 16-55m³/min | 16-5m³/min | 16-55m³/min | 16-55m³/min | 16-55m³/min | 16-55m³/min | 16-55m³/min | 16-55m³/min | 16-55m³/min |
| Drill pipe length | 3m | 3m | 3m | 6m | 6m | 6m | 6m | 6m | 6m | 6m |
| Drill pipe diameter | 76mm | 76mm | 76/89mm | 89mm | 89mm | 89mm | 89/102mm | 89/102mm | 89/102mm | 89/102mm |
| Axial pressure | 4T | 4T | 4T | 4T | 4T | 4T | 6T | 6T | 6T | 6T |
| Lifting force | 18T | 18T | 20T | 22T | 24T | 30T | 36T | 38T | 42T | 45T |
| Lifting speed | 20m/min | 20m/min | 20m/min | 20m/min | 20m/min | 20m/min | 20m/min | 20m/min | 20m/min | 20m/min |
| Fast forward speed | 40m/min | 40m/min | 40m/min | 40m/min | 40m/min | 40m/min | 47m/min | 47m/min | 47m/min | 47m/min |
| Maximum turning torque | 4900/NM | 5900/NM | 5900/NM | 8900/NM | 8900/NM | 9900/NM | 14000/NM | 18000/NM | 20000/NM | 22000/NM |
| Maximum rotation speed | 85/170r/min | 85/170r/min | 85/170r/min | 85/170r/min | 85/170r/min | 85/170r/min | 80/160r/min | 80/160r/min | 80/160r/min | 80/160r/min |
| Lifting force of small auxiliary winch | 1.2T | 1.2T | 1.2T | 1.2T | 1.2T | 1.2T | 3T | 3T | 3T | 3T |
| High leg travel | 1.35m | 1.35m | 1.35m | 1.35m | 1.35m | 1.35m | 1.35m | 1.35m | 1.35m | 1.35m |
| Footage efficiency | 10-35m/h | 10-35m/h | 10-35m/h | 10-35m/h | 10-35m/h | 10-35m/h | 10-35m/h | 10-35m/h | 10-35m/h | 10-35m/h |
| Walking speed | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h |
| Weight | 4.5T | 5.5T | 6T | 8T | 9T | 10T | 12T | 14T | 18T | 20T |
| Overall dimension(M) | 3.4*1.8*2.3 | 3.6×1.8×2.3 | 4×1.8×2.3 | 4.8×1.9×2.35 | 5.2×2×2.35 | 5.6×2×2.5 | 6.2×2.1×2.5 | 6.2×2.1×2.5 | 6.2×2.2×2.5 | 6.2×2.2×2.5 |
| Engine | Xidong 55KW | Xidong 65KW | Xidong 73KW | Yuchai 78KW | Yuchai 91KW | Yuchai 92KW | Yuchai 92KW | Yuchai 176KW | Yuchai 190KW | Kangmingsi242 KW |
Advantages of pneumatic drilling rig products:
1. Efficient homework, every second counts!
This drilling rig is equipped with a high-performance power system with strong output power, which can quickly complete drilling tasks. Directly improving work efficiency by nearly 50%, greatly shortening the project cycle
Durable and sturdy, stable and reliable!
Its body is made of high-strength alloy material, which not only resists wear, but also effectively resists various harsh environments. Whether in hot deserts or humid beaches, it can operate stably.
2. Accurate positioning, ultra precise drilling!
The unique intelligent positioning system is another 'secret weapon' of this drilling rig. When operating, simply input preset parameters, and the drilling rig can accurately locate the drilling position with minimal error.
3. Easy to operate, easy to get started!
Don't worry about the complexity of the operation, this drilling rig fully considers the user experience. Humanized operation interface, simple and easy to understand, even beginners can quickly master the operation skills after a short training. One click start and intelligent control make drilling work easy and efficient, greatly reducing the difficulty of manual operation and improving work convenience
Application Scope
It is suitable for industrial and civil drilling and geothermal drilling Large hole diameter, deep drilling,
fast footage, flexible movement and wide application area
FAQ
Q 1: What kind of drilling rig do you have?
A: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement .
Q 2: Where is the address of your company?
A: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China
Q 3: Are you a manufacturer or a trading company?
A:We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China.
Q 4: How long is your delivery time?
A: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance.
Q 5: How long is the warranty of your well drilling rig?
A: Except for consumable spare parts, the whole machine shall be one year.
Q6: How long can your air compressor be used?
A: Normally more than 10 years.
Q 7: What are the terms of payment?
A: TT, Western Union transfer.
Q8, Can you provide us with the documents for customs clearance?
A: Of course. We will send you commercial invoice, sales contract, packing list, bill of lading (FOB or CFR, CIF terms), insurance policy (if CIF terms), and certificate of origin if you need it
Q9: How is your customer service?
A: 24-hour online service. The 48 hour problem was solved (except in special cases).
Q10: How about your after-sales service?
A: 1. Provide customers with online installation and commissioning instructions.
2. Well trained engineers can serve overseas. (non epidemic impact)
|
|

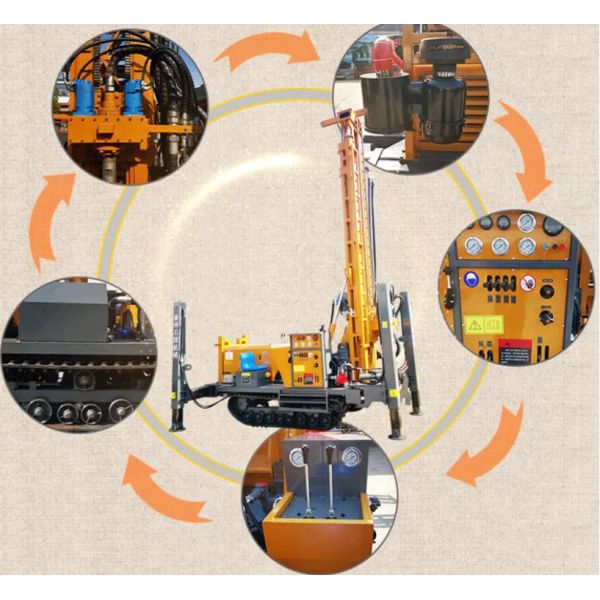

Various Models Pneumatic Drilling Rig Chinese OEM Manufacturers Images
|
